Hot Blast Stove Checker Brick — Low-Creep Fireclay & High-Alumina Profiles

Checker brick is the heat-storage mass of a hot blast stove, and it fails in a way that surprises people: not by dissolving, but by squashing. The checker column carries its own weight at high temperature for years. If the brick creeps, channels deform, airflow is restricted, heat exchange collapses, and the stove comes out of service with most of its brick still chemically intact.

Design Against Creep First

Everything about checker specification follows from that. Alumina content matters mainly because it buys refractoriness under load and creep resistance; density and strength matter because the column is loaded. Corrosion is rarely the limiting mechanism in a well-run stove.

XZK checker grades span RUL from 1300 °C (XZK-RN36, low-creep fireclay) to 1500 °C (XZK-RL65, low-creep high-alumina), with creep rate controlled throughout. Those two figures — RUL and creep — are what determine whether the channels are still open in twenty years.

Grade the Shaft, Do Not Uniform-Specify It

Temperature falls with depth, so the correct design grades the shaft:

• Upper courses (hottest) — XZK-RL65: 65% Al₂O₃, RUL 1500 °C, CCS ≥65 MPa.
• Mid courses — XZK-RL55 (RUL 1470 °C) or XZK-RL48 (RUL 1420 °C).
• Lower courses (coolest) — XZK-RN42, RN40 or RN36: RUL 1300–1410 °C, CCS ≥35–45 MPa.

Applied across a full stove, grading typically removes 15–25% from the package cost without shortening the campaign — which makes it one of the highest-return decisions in a stove reline.

Geometry: Heat Exchange vs Pressure Drop

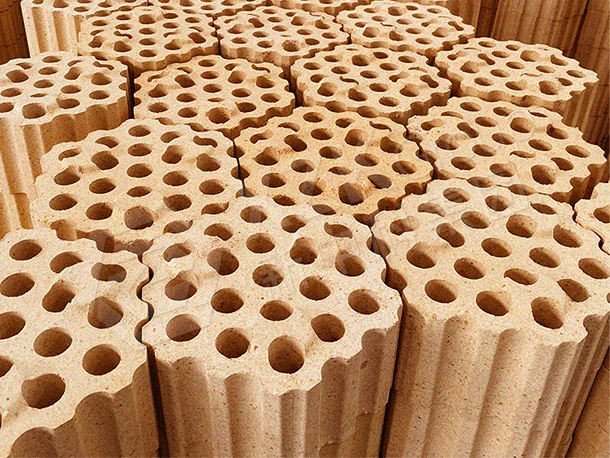

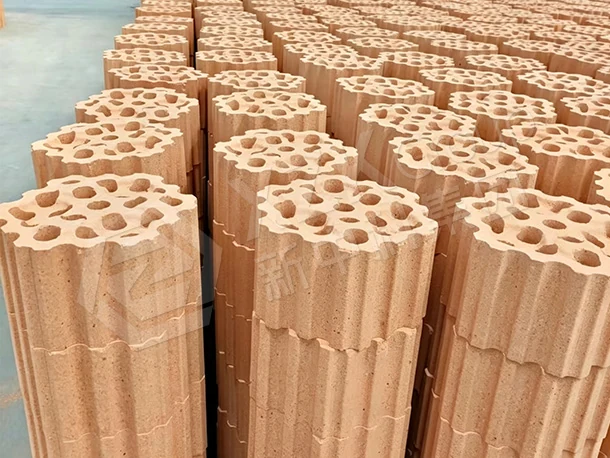

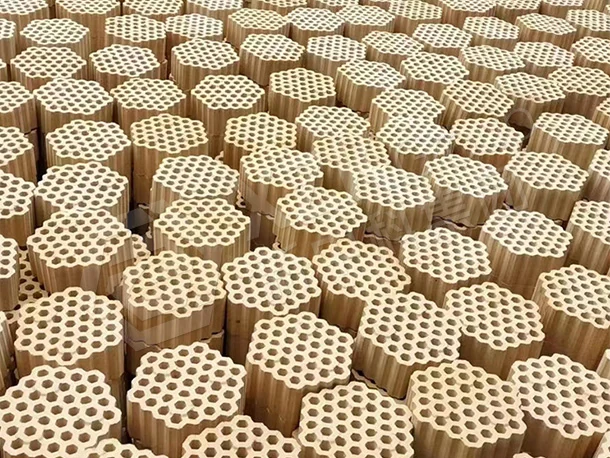

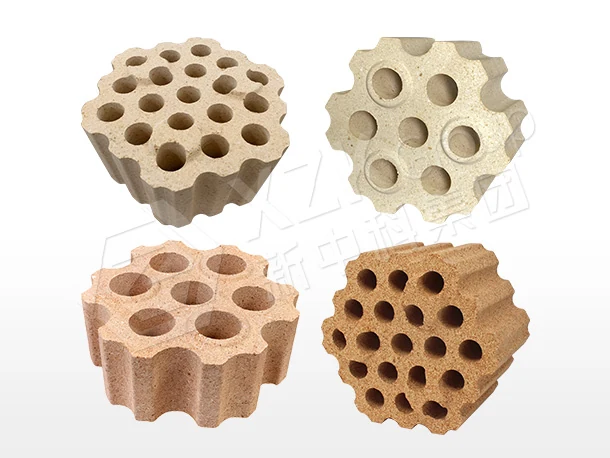

Checker performance is not only material — it is shape. Channel geometry and wall thickness set the specific surface area, which governs both heat exchange and pressure drop. More surface area means better heat transfer but higher pressure drop and greater fouling risk. We supply standard high-capacity profiles and will reproduce your existing geometry from a drawing or sample brick, so changing supplier does not force a stove redesign.

Supply and Installation

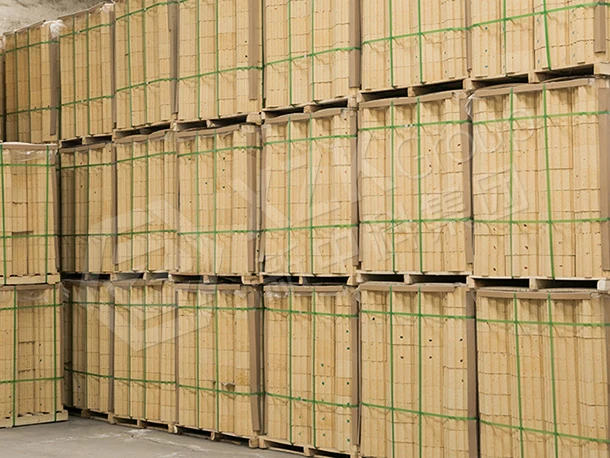

Minimum order 20 metric tons for standard geometries and 30 metric tons and above where new dies are required; lead time 30–50 days. Checker brick is pressed to tight dimensional tolerance and delivered course-sorted and labelled, which shortens installation and removes the risk of a course being laid with the wrong grade.

Where This Grade Sits in the Lining System

Stove refractories are judged over decades rather than over campaigns. Creep in compression and dimensional stability at temperature decide whether the checker channels are still open in year twenty, while cold crushing strength — the number most often quoted — is close to irrelevant to that outcome.

XZK supplies hot blast stove checker brick as one zone of a zoned package rather than as a standalone item: the grades normally zoned alongside it — among them low-creep high-alumina brick — are documented on the hot blast stove refractories page, and the vessel-level architecture — where each zone starts and ends, and which mechanism actually limits the campaign — is set out on the hot blast stove page.

Campaign data measured on this class of lining — including the wear profile that drove grade selection — is published in the Tata Steel Kalinganagar 5873 m³ BF hot blast stove programme project reference.
