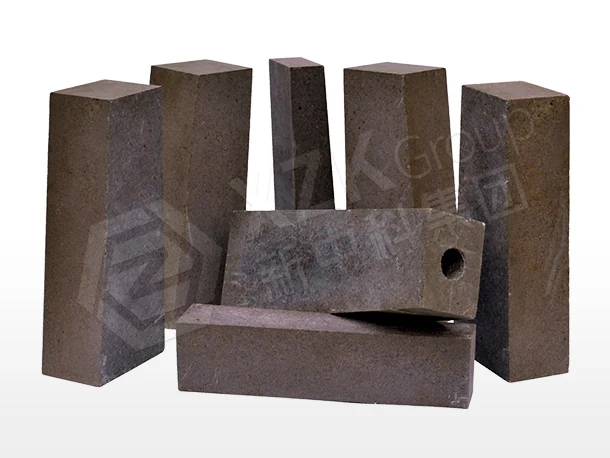

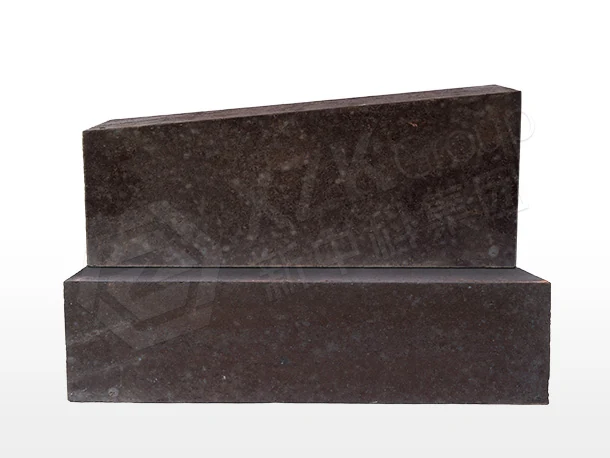

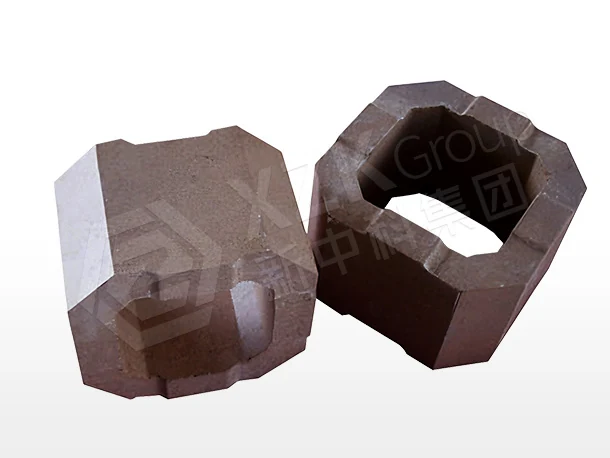

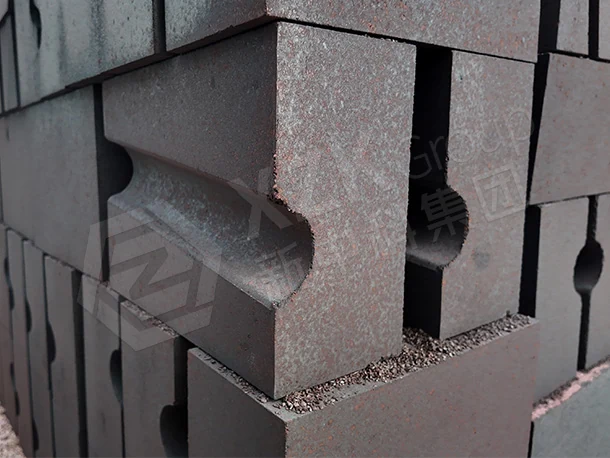

Magnesia Chrome Brick for Ferro-Alloy, Non-Ferrous and RH Furnaces

Magnesia chrome brick is specified for one reason: some slags dissolve magnesia faster than magnesia can resist them. When a slag is rich in alumina or chrome, it reacts with the magnesia in a plain basic brick to form low-melting spinel and other phases at the hot face, and the lining washes away well before its design life. Pre-introducing chrome oxide into the brick saturates that reaction pathway, and the slag has far less left to attack.

The Mechanism, Stated Plainly

Magnesia (MgO) and chrome oxide (Cr₂O₃) combine at firing temperature to form magnesia-chrome spinel. A brick built on that spinel already contains the phase that an alumina-rich slag would otherwise try to create at the hot face. Since the reaction has effectively already happened, further slag attack has little driving force, and penetration slows dramatically. Direct bonding — where spinel forms a continuous network between magnesia grains rather than sitting in a silicate film — is what gives the brick its hot strength and slag resistance.

Where Magnesia-Chrome Is the Right Call

• Ferro-alloy submerged arc furnaces — FeMn, FeCr and FeSi slags are spinel-forming by nature; this is the classic application.
• Non-ferrous converting and refining — copper and nickel vessels where chrome-bearing basic refractories are the established practice.
• RH degassers and special-alloy ladles — zones exposed to high-alumina inclusions with heavy thermal cycling.
• Not for standard BOF or ladle slag lines — those slags are FeO-rich and basic, and MgO-C with a proper antioxidant package will normally give better life at lower cost.

Selecting the Cr₂O₃ Level

More chrome is not automatically better. Higher Cr₂O₃ improves slag resistance and thermal shock tolerance, but it raises material cost and, in some jurisdictions, adds handling and disposal obligations. The correct level follows from your slag analysis and operating temperature. We will recommend a specific grade from a slag sample rather than quoting the highest-chrome option by default — that is a specification decision, not a sales one.

Handling and Compliance

Chrome-bearing refractories are regulated in some markets, particularly with respect to hexavalent chromium formation under certain service and disposal conditions. We supply full material safety documentation with every order and will advise on compliant handling of spent lining material for your jurisdiction. If your plant or your customer restricts chrome-bearing materials, tell us early and we will propose a chrome-free alternative for the zones where it is viable.

Manufacturing and Documentation

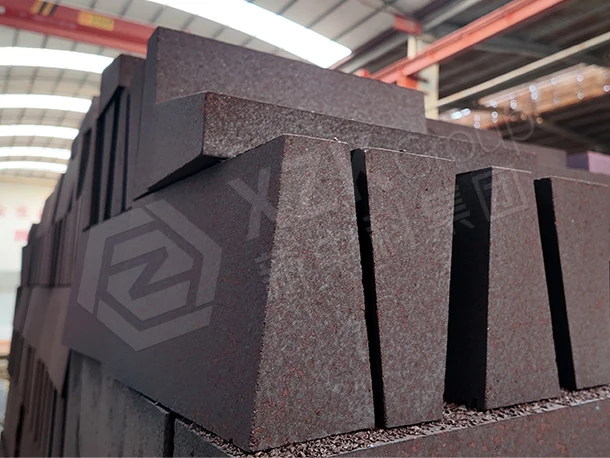

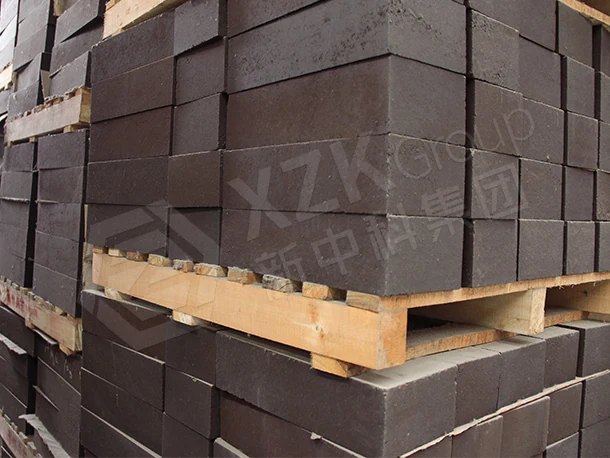

XZK magnesia chrome bricks are pressed at high pressure and fired to develop direct bonding between magnesia grains and spinel. Bulk density and apparent porosity are tested per ASTM C830, cold crushing strength per ASTM C133, refractoriness under load per ISO 1893, and chemistry including MgO and Cr₂O₃ per GB/T 5069. A batch Certificate of Analysis ships with every lot, and pallets are labelled with grade and chrome content for your handling records.

Where This Grade Sits in the Lining System

Carbon-bonded basic grades are never specified in isolation. Carbon level, antioxidant package and bulk density are all set by the zone, and the zone map is set by the vessel — which is why a grade that performs well in one position can fail early in the next.

XZK supplies magnesia chrome brick as one zone of a zoned package rather than as a standalone item: the grades normally zoned alongside it — among them magnesia carbon brick — are documented on the magnesia-carbon and basic refractories page, and the vessel-level architecture — where each zone starts and ends, and which mechanism actually limits the campaign — is set out on the steel ladle and RH/VD page.

For a complete vessel programme built on this class of material, including the wear survey that set the zoning, see the JFE Steel RH degasser snorkel and ladle flow control programme project reference.
