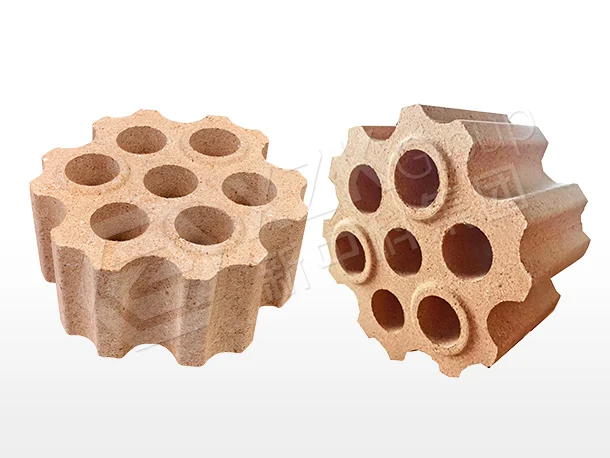

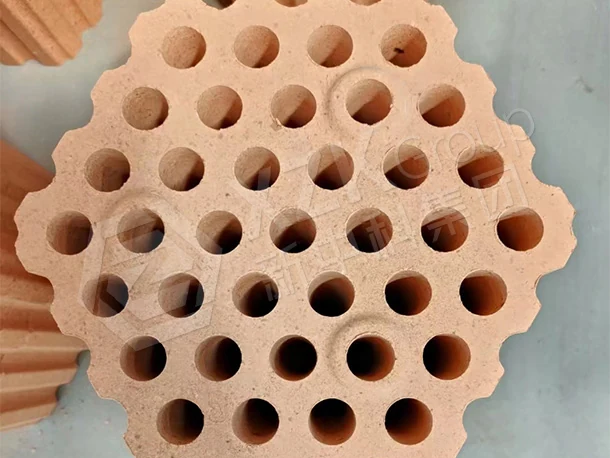

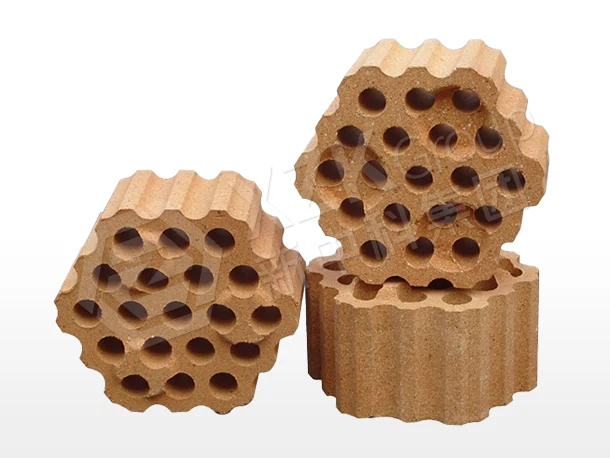

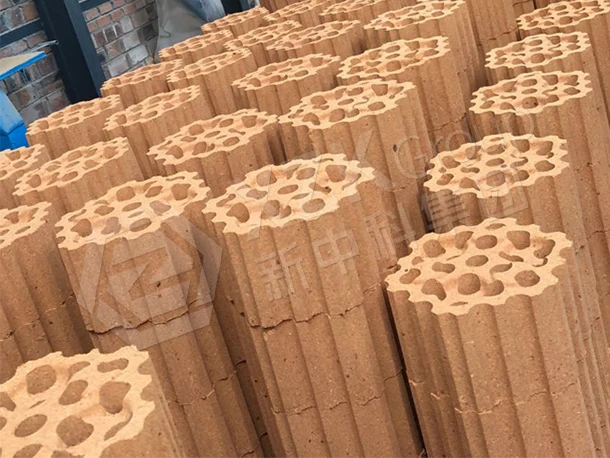

Low-Creep Andalusite Brick for 1200°C+ Hot Blast Stove Domes

Low-creep andalusite brick is the material that makes high blast temperature possible. Andalusite is not simply a higher-alumina brick — it behaves differently in service, and that difference is the whole reason it is specified at the top of a stove.

What Andalusite Does In Service

Andalusite converts to mullite at service temperature, and that conversion produces a fine, interlocked, volume-stable microstructure. The practical consequences are better creep resistance and better thermal shock behaviour than a high-alumina brick of comparable chemistry. In a stove dome — where the material is both loaded and cycled — those are exactly the two properties that govern life.

This is why andalusite sits at the top of the range even though its headline alumina content is not the highest available. It is not the Al₂O₃ number that matters here; it is what happens to the microstructure at temperature.

Grade Selection

• XZK-DR80 — 80% Al₂O₃, density 2.60 g/cm³, CCS 80 MPa, RUL 1580 °C. Highest-temperature dome designs.
• XZK-DR75 — 75% Al₂O₃, density 2.50 g/cm³, CCS 75 MPa, RUL 1550 °C. Standard high-temperature stoves.
• XZK-DR65 — 65% Al₂O₃, density 2.40 g/cm³, CCS 65 MPa, RUL 1530 °C. Upper checker courses below the dome.

All grades carry creep rate controlled at ≤0.8% under the specified conditions.

Where the Premium Stops Paying

Andalusite earns its cost in the dome and the hottest one to three checker courses. Below roughly 1400 °C, low-creep high-alumina brick delivers adequate creep performance for less money, and specifying andalusite throughout a stove is a common and expensive over-specification. The correct design is almost always a graded one: andalusite at the top, high-alumina below, fireclay checkers at the bottom.

We will identify that boundary from your stove drawing and target blast temperature rather than quoting the premium grade across the whole vessel — because a stove where every course is premium is not a better stove, it is a more expensive one.

Supply and Documentation

Minimum order 20 metric tons with 30–50 days lead time. Bulk density per ASTM C830, crushing strength per ASTM C133, RUL per ISO 1893, creep per ISO 3187 and chemistry per GB/T 6900 are tested per batch with a Certificate of Analysis on every shipment. Complete stove packages are available, graded by course with a material schedule and layout drawing.

Where This Grade Sits in the Lining System

Stove refractories are judged over decades rather than over campaigns. Creep in compression and dimensional stability at temperature decide whether the checker channels are still open in year twenty, while cold crushing strength — the number most often quoted — is close to irrelevant to that outcome.

XZK supplies low-creep andalusite brick as one zone of a zoned package rather than as a standalone item: the grades normally zoned alongside it — among them low-creep high-alumina brick — are documented on the hot blast stove refractories page, and the vessel-level architecture — where each zone starts and ends, and which mechanism actually limits the campaign — is set out on the hot blast stove page.

For a complete vessel programme built on this class of material, including the wear survey that set the zoning, see the Tata Steel Kalinganagar 5873 m³ BF hot blast stove programme project reference.
