Tata Steel Kalinganagar — 5873 m³ BF Hot Blast Stove Insulation & Lining

Tata Steel Kalinganagar's 5873 m³ blast furnace is among the largest in the world, and its hot blast stoves were specified accordingly: at that scale, stove refractory is a capital decision whose consequences run for a design campaign measured in decades. XZK supplied the stove insulation and lining package — dome, combustion chamber, checkerwork and the full insulation system.

Client and Plant Context

A furnace of this size imposes two requirements that smaller stoves do not. First, the checker volume runs to hundreds of tonnes, so the difference between a uniform premium specification and a correctly graded one is measured in serious capital. Second, the stove must hold its geometry for a very long campaign, because the outage cost of an intermediate repair on a furnace this size dwarfs any material saving.

The Problem as Diagnosed

The specification had to answer three separate questions at once. Geometry: checker channels must stay open, which makes creep — not alumina content — the governing property on the load-bearing courses. Thermal containment: shell temperature had to be held within limit, which makes the insulation design rather than the insulation product the deciding factor. Campaign: the dome and combustion chamber had to survive the changeover cycling for the full campaign, which makes thermal shock resistance as important as creep at the top.

Engineering Approach

• Dome and upper checker — low-creep andalusite brick, creep ≤0.2% at 1400 °C × 50 h, RUL ≥1580 °C. Andalusite converts to mullite in service, producing a fine interlocked microstructure with markedly better creep resistance than conventional high-alumina at the same service temperature — and it holds that geometry rather than compacting.
• Mid courses — low-creep high-alumina, specified to the temperature and load actually present rather than to the courses above it.

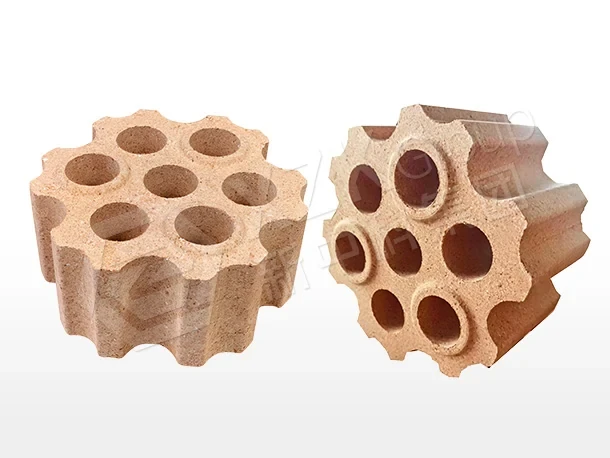

• Lower courses — low-creep fireclay checkers, where mechanical stability is the requirement and premium creep performance no longer pays.
• Insulation — a density ladder rather than a single product: lightweight silica in the high-temperature zones for volume stability, high-alumina insulating brick through the intermediate range, and mullite insulating brick where the temperature permits. Grading insulation by density against the local temperature is what holds shell temperature down without over-insulating a zone that does not need it.

Supply, Documentation and Logistics

Creep was verified per production batch, at the stated test condition, on every course where creep governs — not only at type approval. Checker brick was pressed to tight dimensional tolerance and delivered course-sorted and labelled, because at this checker volume a 2 mm per-brick tolerance accumulation would misalign channels across dozens of courses and let hot gas short-circuit through the widest passages. Consignment sequencing followed the installation schedule.

Installation and Commissioning

Installation followed the course schedule with joint thickness and alignment audited. The dome expansion allowance at the springing point was verified before cycling service began. Dry-out and heat-up followed the material curves, with shell temperature monitored from first firing so the insulation design could be confirmed against measurement rather than assumed.

Results

The density-graded insulation reduced shell temperature to within the design target, and stove geometry held to design — no measurable channel closure, no drift in pressure drop, blast temperature delivered to specification. The graded material specification delivered the design campaign at a material cost materially below a uniform premium alternative, with the saving reinvested in the dome courses where creep and thermal shock actually govern.

Why Scale Changes the Specification

The same grading logic applies to a 500 m³ stove and a 5873 m³ one, but the consequences of getting it wrong are not proportional — they are stepwise. On a small stove an under-specified dome course may cost an intermediate repair during a planned outage. On a furnace of this size it costs a stove out of a set, which means the whole stove cycle is rebalanced around a reduced configuration and the blast temperature available to the furnace drops. That asymmetry is why the premium material in this package was concentrated at the dome and combustion chamber rather than distributed, and why creep verification was run per batch across every governing course. It is also why the insulation was graded by density against local temperature rather than specified as one product: over-insulating a zone that does not need it is slower to fail and just as certain to, and under-insulating the high-temperature zone raises shell temperature in a way that is expensive to correct later.

What Transfers to Other Plants

Insulation should be specified as a density ladder against local temperature, and checkerwork as a creep gradient against local load. Both are grading decisions, and both return more than any single-grade upgrade at the same cost.
