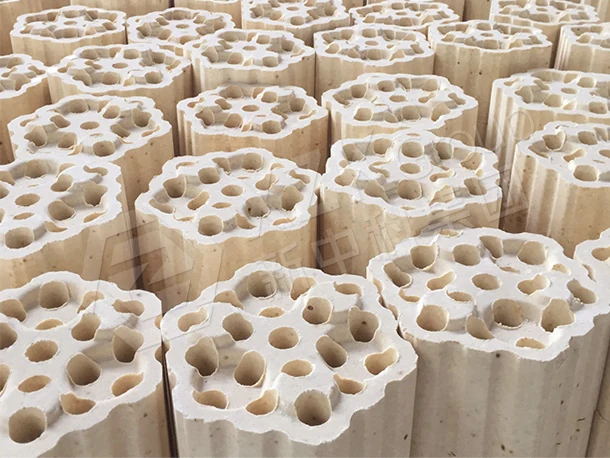

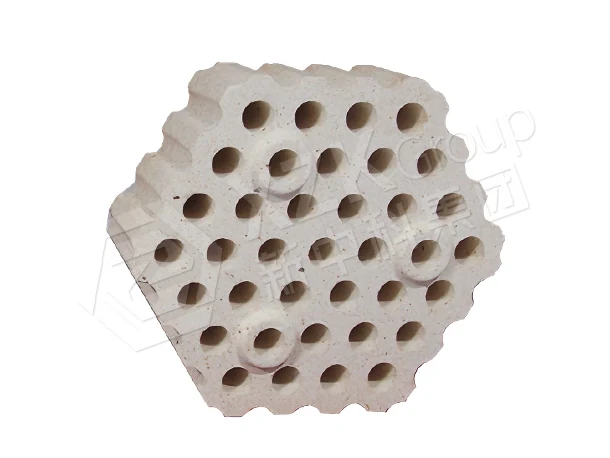

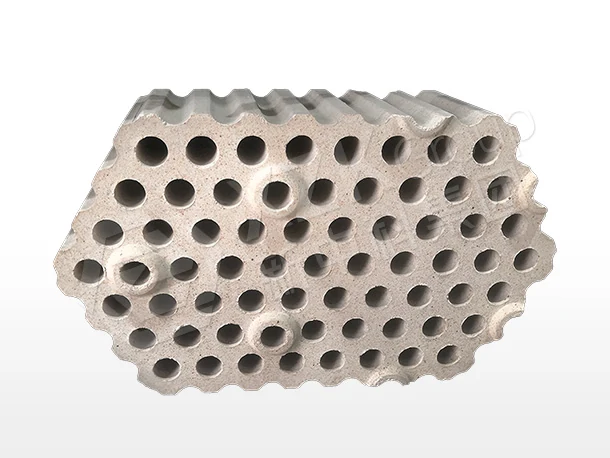

Low-Creep Sillimanite Brick for Stove Shafts, Burners & Cycled Zones

Low-creep sillimanite brick is the thermal shock specialist in the stove range. Where andalusite is chosen for creep resistance in the dome, sillimanite is chosen where temperature swings are the dominant stress — burner surrounds, shaft walls, quarls and any zone that cycles hard.

Read the Trade-Off Explicitly

The XZK-SL series makes the trade-off visible, which is how specification should work:

• XZK-SL57-P — 57% Al₂O₃, RUL 1560 °C, thermal shock 25 cycles. Lowest refractoriness, best cycling tolerance.
• XZK-SL60-P — 60% Al₂O₃, RUL 1580 °C, thermal shock 20 cycles. The middle option.
• XZK-SL65-P — 65% Al₂O₃, RUL 1650 °C, thermal shock 15 cycles, porosity 17%. Highest refractoriness, lowest cycling tolerance.
• XZK-SL60-C — cast large block, RUL 1550 °C, thermal shock 25 cycles. Fewer joints on long wall runs.

The pattern is the usual one: higher alumina buys refractoriness and costs thermal shock tolerance. Pick by mechanism, not by the highest number on the page.

Why Burner Zones Fail Differently

Burner surrounds and quarls see the sharpest temperature gradients in a stove — hot on the flame side, cooler on the structure side, cycling with every changeover. That gradient produces stress, and stress produces spalling. A material with excellent creep resistance but modest shock tolerance will still lose its face there, and a material with excellent shock resistance but lower RUL is usually the better specification. This is the classic sillimanite application.

Sillimanite vs Andalusite

Both are aluminosilicate materials that convert toward mullite in service, and both outperform plain high-alumina in creep. The distinction is emphasis: andalusite for sustained load and maximum blast temperature (the dome), sillimanite for cycling (shaft walls, burner surrounds, quarls). On a well-graded stove both usually appear, in different courses.

Supply and Documentation

Minimum order 20 metric tons with 30–50 days lead time. Bulk density and porosity per ASTM C830, crushing strength per ASTM C133, RUL per ISO 1893, thermal shock cycles and chemistry per GB/T 6900 are tested per batch, with a Certificate of Analysis on every shipment. Burner quarls and complex shapes are produced to drawing with machined faces where required.

Where This Grade Sits in the Lining System

Stove refractories are judged over decades rather than over campaigns. Creep in compression and dimensional stability at temperature decide whether the checker channels are still open in year twenty, while cold crushing strength — the number most often quoted — is close to irrelevant to that outcome.

XZK supplies low-creep sillimanite brick as one zone of a zoned package rather than as a standalone item: the grades normally zoned alongside it — among them low-creep high-alumina brick — are documented on the hot blast stove refractories page, and the vessel-level architecture — where each zone starts and ends, and which mechanism actually limits the campaign — is set out on the hot blast stove page.

The Tata Steel Kalinganagar 5873 m³ BF hot blast stove programme reference documents how this class of material performed in full service, with the measured campaign figures rather than datasheet values.
