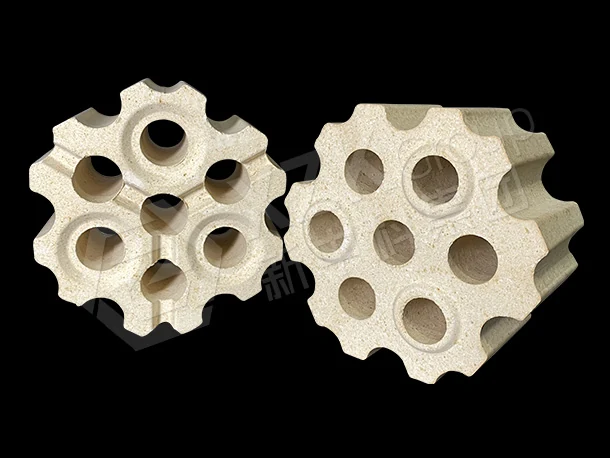

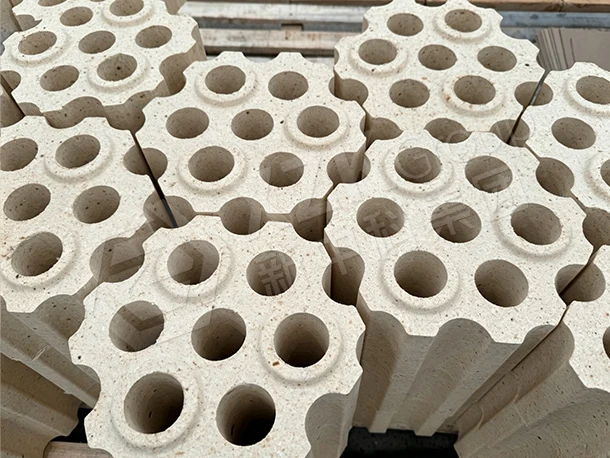

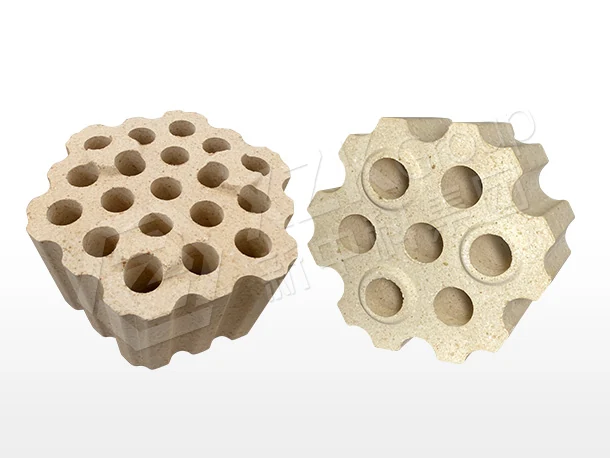

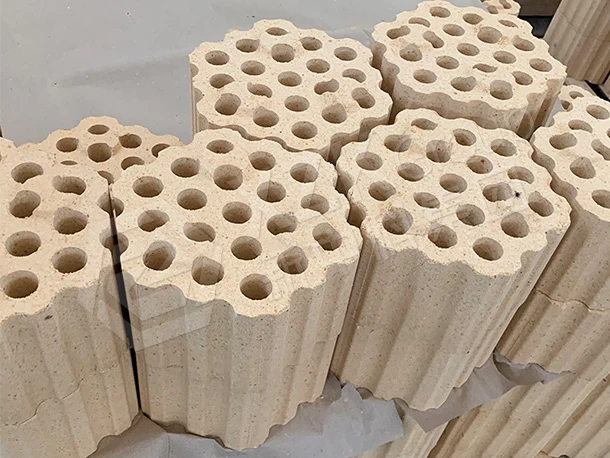

Low-Creep High-Alumina Brick for Hot Blast Stove Domes & Checkers

Low-creep high-alumina brick is the workhorse of the hot blast stove above the checker shaft. Stoves do not usually fail because the brick dissolved — they fail because the brick deformed. Under sustained compressive load at temperature, refractory slowly changes shape: checker channels close, domes settle, airflow is restricted, and the stove has to come down with most of its lining still intact.

Creep Is the Specification That Matters

When you evaluate a stove material, corrosion resistance is the easy number and creep is the important one. XZK-RL grades are specified with creep rate controlled at ≤0.8% under load, alongside refractoriness under load from 1420 °C (RL48) to 1500 °C (RL65). Those two figures, read together, tell you whether the geometry will hold for a 20-plus year campaign.

Ask any supplier for a creep figure at a stated temperature and duration. If they quote only Al₂O₃ content and crushing strength, they are not giving you the properties that govern stove life.

Grade the Stove, Do Not Uniform-Specify It

Temperature falls with depth through a stove. Running one premium grade from dome to bottom is the most common way stove packages become unnecessarily expensive. The standard approach is to grade by course:

• XZK-RL65 — 65% Al₂O₃, RUL 1500 °C, CCS ≥65 MPa. Hottest dome and top checker courses.
• XZK-RL55 — 55% Al₂O₃, RUL 1470 °C, CCS ≥60 MPa. Mid courses.
• XZK-RL48 — 48% Al₂O₃, RUL 1420 °C, CCS ≥55 MPa. Cooler courses.

Applied across a full stove, that grading typically removes 15–25% from the package cost without shortening the campaign.

Where Andalusite Takes Over

For the hottest courses, andalusite usually earns its premium: better creep behaviour, better thermal shock resistance, and support for higher blast temperature. Below roughly 1400 °C, though, that premium buys performance you do not need. The correct specification is usually andalusite at the top, low-creep high-alumina below it — not one or the other throughout.

Supply and Documentation

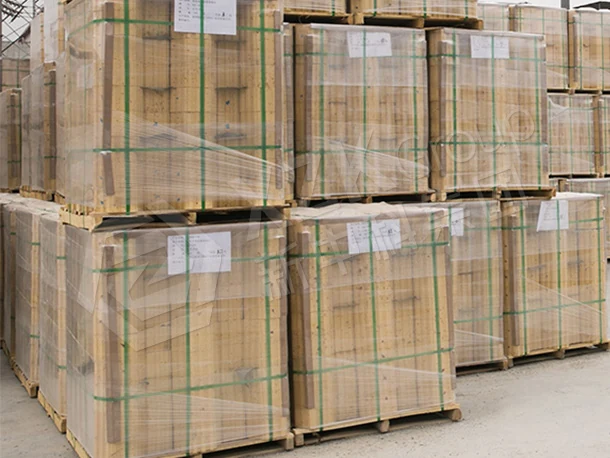

Minimum order 20 metric tons with 30–50 days lead time for stove packages, because brick is pressed to tight dimensional tolerance and sorted by course. Bulk density per ASTM C830, crushing strength per ASTM C133, RUL per ISO 1893, creep per ISO 3187 and chemistry per GB/T 6900 are tested per batch with a Certificate of Analysis on every shipment. Material is delivered course-sorted and labelled to speed installation.

Where This Grade Sits in the Lining System

Stove refractories are judged over decades rather than over campaigns. Creep in compression and dimensional stability at temperature decide whether the checker channels are still open in year twenty, while cold crushing strength — the number most often quoted — is close to irrelevant to that outcome.

XZK supplies low-creep high-alumina brick as one zone of a zoned package rather than as a standalone item: the grades normally zoned alongside it — among them low-creep andalusite brick — are documented on the hot blast stove refractories page, and the vessel-level architecture — where each zone starts and ends, and which mechanism actually limits the campaign — is set out on the hot blast stove page.

Campaign data measured on this class of lining — including the wear profile that drove grade selection — is published in the Tata Steel Kalinganagar 5873 m³ BF hot blast stove programme project reference.
